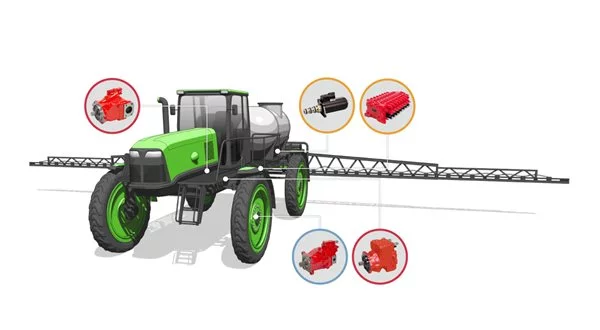

Sprayers
KDRDE5K/KWE5K
The KDRDE5K and KWE5K series valves are proportional pressure-reducing and directional control valves of cartridge type. Available in 12 and 24 VDC versions, they can be used in combination to provide various compact control solutions for agricultural and mobile machinery.
- 90 bar supply pressure
- 10 l/min and 16 l/min flow rates
- Common cavity for KDRDE5K and KWE5K
- Excellent hysteresis
KLSV
The KLSV is a series of flow-sharing, load-sensing main control valves for multifunction construction machinery. Their low hysteresis and excellent pressure drop characteristics provide superior performance and efficiency.
- Post-compensated, flow-sharing design
- Hydraulic pilot and electro-hydraulic actuation
- 400 bar continuous pressure rating
- Special versions for wheel loaders, midi excavators and skid steer loaders
- Three sizes with sectional flow rates of 180, 250 and 400 l/min
K3VL
The K3VL series swash plate type axial piston pumps are designed to satisfy a variety of construction and off-highway applications where a medium to high pressure variable displacement pump is required.
- 28 to 200cc displacements
- 320 bar continuous pressure rating
- Load sensing, torque limiting and electronic displacement control
- Integral impellor pump available on 200cc unit
K3VLS
Kawasaki’s medium duty pump, the K3VLS, has been developed for machines and equipment that use a load sensing control system and/or electric displacement control systems. Its launch follows extensive research and development as our engineers combined efficiency with simplicity to deliver the most technologically advanced pump on the market.
- 50, 65, 85, 105, 125 & 150cc displacements
- 280 bar continuous pressure rating
- 350 bar maximum pressure rating
- Load sensing, torque limiting, power shift and electronic displacement controls
K8V
The K8V series is Kawasaki’s closed loop pump with excellent controllability and superior efficiency. It is used in hydrostatic transmissions ona variety of off-highway machinery.
- 71, 90 and 125cc displacements
- 400 bar rated pressure
- Electronic and hydraulic displacement control
- Through drive and tandem versions available
M7V
The M7V series is a high speed variable displacement swash plate type axial piston motor. It is suitable for, but not limited to, use in hydrostatic transmissions, drill rigs and crane winch systems.
- 85, 112, 160 and 212cc displacements
- 400 bar continuous pressure rating
- Electronic and hydraulic displacement control
- Fixed displacement version available
- Compact design
