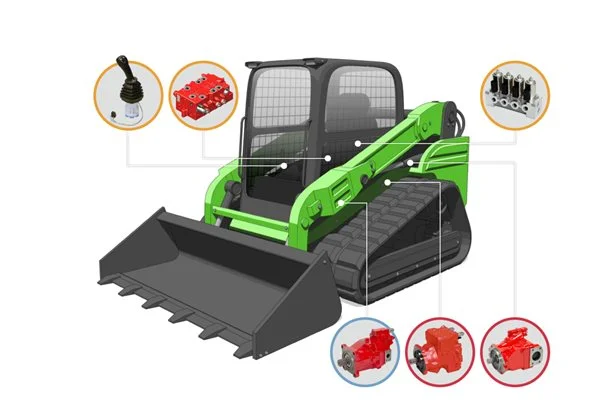

Track Loaders
K-Axle
The K-Axle is the all new high speed electric motor and pump unit for construction vehicles. A scalable 50cc single or tandem unit able to operate at speeds of up to 5,000 rpm
- Compact size
- High efficiency
- Highly flexible
KDRDE5K/KWE5K
The KDRDE5K and KWE5K series valves are proportional pressure-reducing and directional control valves of cartridge type. Available in 12 and 24 VDC versions, they can be used in combination to provide various compact control solutions for agricultural and mobile machinery.
- 90 bar supply pressure
- 10 l/min and 16 l/min flow rates
- Common cavity for KDRDE5K and KWE5K
- Excellent hysteresis
PV/ERU Hydraulic and Electronic Controls
Kawasaki’s range of pilot controllers offer unparalleled controllability and superior operator feel. Available for hydraulics pilot control in the PV range, or electronics control in the ERU range they are suitable for a wide variety of industrial vehicles.
- Joystick, foot pedal, dual and single axis versions available
- Wide variety of handle options including potentiometer with integral amplifier
- FNR function for transmission control
- Integral damping feature on foot pedal type
- PWM and CanBus ERU versions available
K3VLS
Kawasaki’s medium duty pump, the K3VLS, has been developed for machines and equipment that use a load sensing control system and/or electric displacement control systems. Its launch follows extensive research and development as our engineers combined efficiency with simplicity to deliver the most technologically advanced pump on the market.
- 50, 65, 85, 105, 125 & 150cc displacements
- 280 bar continuous pressure rating
- 350 bar maximum pressure rating
- Load sensing, torque limiting, power shift and electronic displacement controls
K8V
The K8V series is Kawasaki’s closed loop pump with excellent controllability and superior efficiency. It is used in hydrostatic transmissions ona variety of off-highway machinery.
- 71, 90 and 125cc displacements
- 400 bar rated pressure
- Electronic and hydraulic displacement control
- Through drive and tandem versions available
M7V
The M7V series is a high speed variable displacement swash plate type axial piston motor. It is suitable for, but not limited to, use in hydrostatic transmissions, drill rigs and crane winch systems.
- 85, 112, 160 and 212cc displacements
- 400 bar continuous pressure rating
- Electronic and hydraulic displacement control
- Fixed displacement version available
- Compact design
